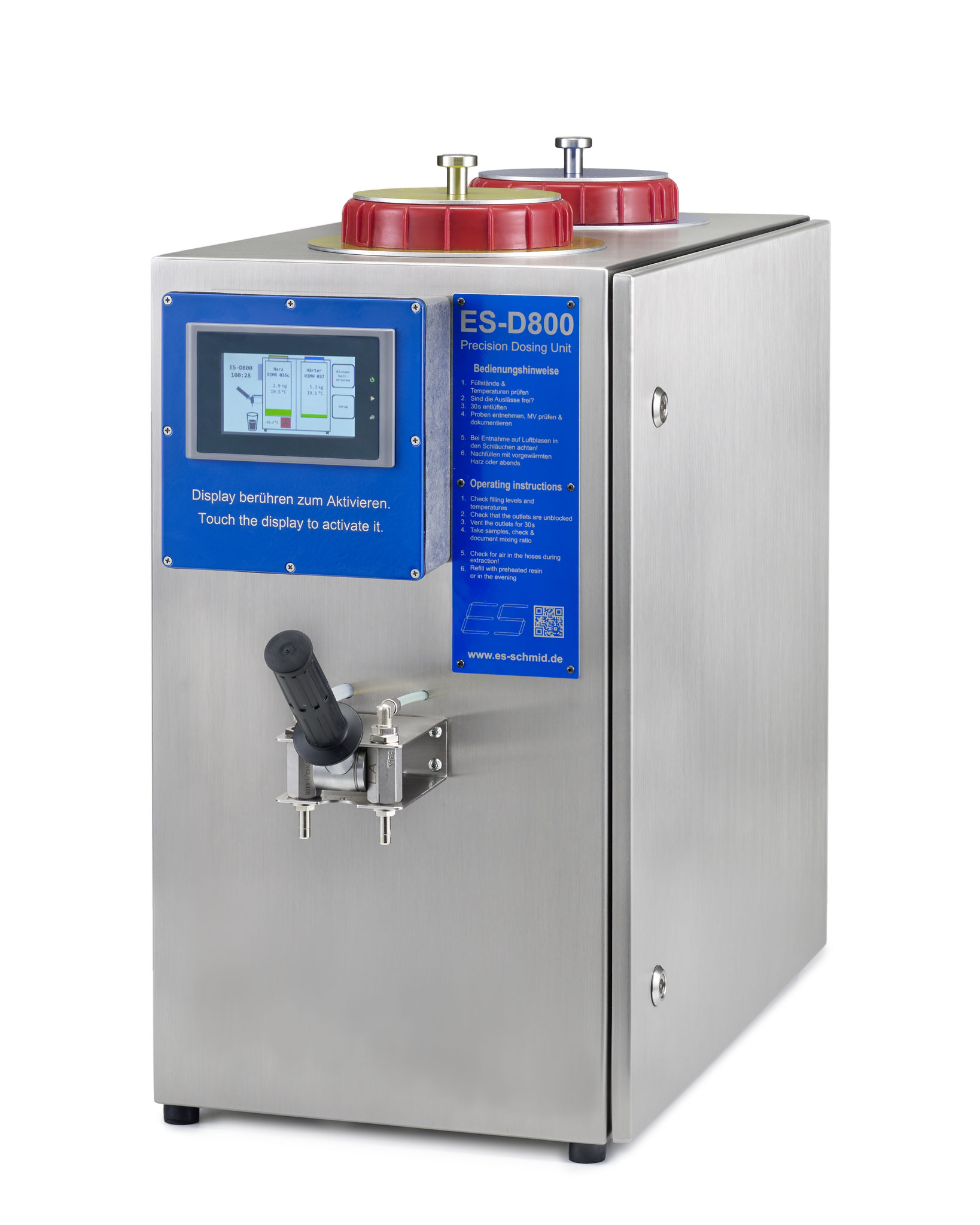

Dosing System ES-D800

Professional precision dosing system for processing 2-component epoxy resins in GRP and CFRP production.

Proven worldwide for 25 years!


Characteristics

  • Easy handling
  • Easy to clean and low maintenance
  • Care and maintenance-friendly V2A case
  • LCD display with display of:
    - set mixing ratio
    - current temperature of both components
    - current filling level of both components
    - optical and acoustic warning at critical filling level (minimum and maximum levels can be calibrated by the user )
  • Easily accessible thermostat for setting the resin temperature (from 20 °C to 40 ° C)
  • Gear pumps with electric drive
  • Well accessible chain tensioner
  • Mixing ratio: 100: 20 - 100: 50; adjustable with sprocket set
  • Large lid opening for easy filling of both components


Technical specifications

  • High dosing accuracy: ± 0.5% deviation from the mixing ratio
  • Power supply: 220-240 V, 50 Hz
  • Container contents: 2 x 25 liters
  • Dosing capacity: approx. 800 g / min
  • Dimensions (W x H x D): 360 x 680 x 800 mm
  • Weight: about 42 kg

Subject to change without notice!
